dbw

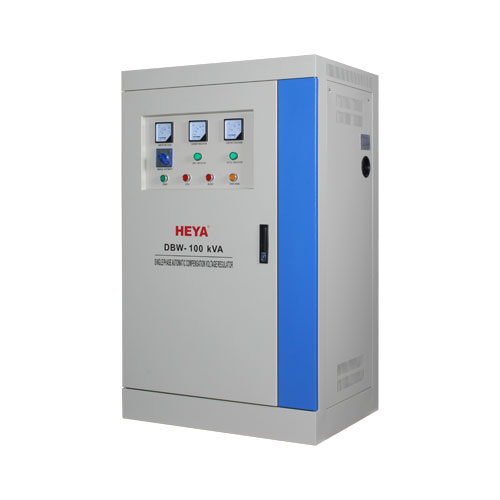

DBW SERIES

Single three phase supper power compensated voltage regulator

0086-0577-61726373 61726126

0086-577-61726925

power@heyuan-cn.com

Model Unit(pcs) Package size(mm) G.W.(Kg)
DBW-20/30/40K 1 700x500x1350 283/310/330
DBW-50/60/70/80K 1 800x600x1500 360/38/400/430
DBW-100/120/150K 1 900x700x1700 480/510/530
DBW-180/200K 1 1000x800x1900 570/600
SBW-50/60/100K 1 800x620x1350 350/370/420
SBW-150/180K 1 1000x720x1700 550/570
SBW-200K 1 1000x720x2000 630
SBW-225K 1 1100x800x1800 660
SBW-250K 1 1100x800x2000 700
SBW-300/320K 1 1100x800x2100 740/760
SBW-400/500/600K 1 1000x800x2100/2Cabinetry 1100/1500/220
SBW-800/1000/1200K 1 850x1000x2200/3Cabinetry 2800/3500/4100
SBW-1600/2000K 1 110x1100x2200/4Cabinetry 5560/7100

If The input voltage is in the range of 210-250v the regulator is able to provide 100% listed maximum output power.Maximum output power Will change as the curve shown below



Technology Relay Control System+Programmed control computerized + control
algorithm relay“Cross zero”
Input voltage Single phases: 175-265V Three phases four-line
175V-265V( phases voltage) 304V-456V(Line -voltage)
154V-286V(phases voltage) 270V-490V(Line -voltage)
Output voltage Single phases:220V;Three phases:380V;
Output deviance 1-5%( Adjustable)
Frequency 50-60Hz
Efficiency ≥95%(Power > 50KVA)
Response time ≤1.5S
Ambient temperature -10°C~+40°C
Insulation resistance ≥5MΩ
Electricalintensity Without breakdown and
flashover phenomena at power frequency sine voltage 2000V for 1 min
Overload Double rated current,one min
Waveform distortion Non-lack fidelity wareform
Protect Overvoltage,overcurrent,feed phases
