PRODUCT

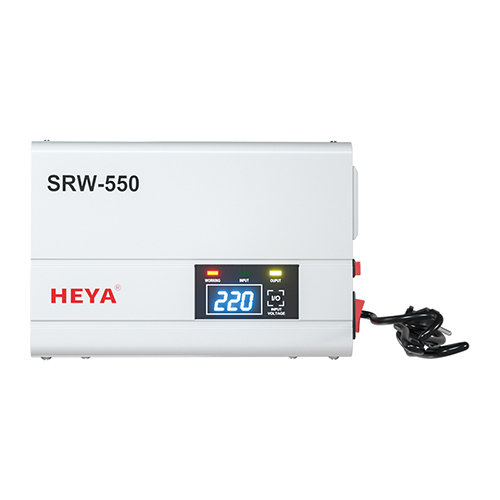

SRW-550

SRW SERIES

0086-0577-61726373 61726126

0086-577-61726925

power@heyuan-cn.com

Model Power output Unit(pcs) Package size(mm) G.W.(Kg)
SRW-500 500VA 6 550x450x240 4
SRW-1000 1000VA 6 550x450x240 5
SRW-2000 2000VA 6 550x450x240 6

If The input voltage is in the range of 210-250v the regulator is able to provide 100% listed maximum output power.Maximum output power Will change as the curve shown below



Technology Relay Control System+Programmed control computerized + control
algorithm relay“Cross zero”
Input voltage AC140-260V
Output voltage 220V±8%
Phase Single-Phase
Frequency 50-60Hz
Adjust time <1sec.(against 10% input voltage deviation)
Protection over voltage <250±2V
Protection lack voltage <185V±2V
Delay 5 second
Temperature protection 110°C±10°C
Ambient temperature -10~+45°C
Relative humidity <90%
Wave form distortion No additional wave form distortion
Efficiency <95%
Dielectric strength 1500V/min
Insulation resistance ≥5MΩ
