SDW SERIES

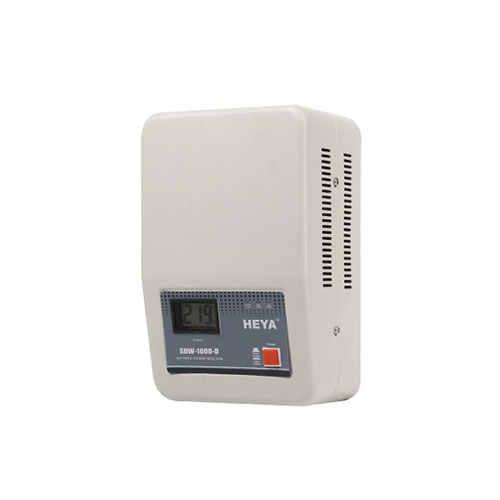

Wall mounted single phase servo type high accuracy full automatic AC voltage regulator

0086-0577-61726373 61726126

0086-577-61726925

power@heyuan-cn.com

Model Power output Unit(pcs) Package size(mm) G.W.(Kg)
SDW-500-D 500VA 4 455x330x350 19.2
SDW-1000-D 1000VA 4 455x330x350 25.84
SDW-3000-D 3000VA 1 445x330x210 13.26
SDW-5000-D 5000VA 1 445x330x210 16.8
SDW-8000-D 8000VA 1 535x395x270 24.95
SDW-10000-D 10000VA 1 535x395x270 28.55

If The input voltage is in the range of 210-250v the regulator is able to provide 100% listed maximum output power.Maximum output power Will change as the curve shown below



Technology Relay Control System+Programmed control computerized + control
algorithm relay“Cross zero”
Input voltage AC140-260V
Output voltage 220V±1.5% OR 3.5%
Phase Single-Phase
Frequency 50-60Hz
Adjust time <1sec.(against 10% input voltage deviation)
Protection over voltage <255±2V
Protection lack voltage <185V±2V
Delay 3 second
Temperature protection 110°C±10°C
Ambient temperature -10~+45°C
Relative humidity <90%
Wave form distortion No additional wave form distortion
Efficiency >95%
Dielectric strength 1500V/min
Insulation resistance ≥5MΩ
